道依茨发动机 F6L914
PRODUCT & INFORMATION

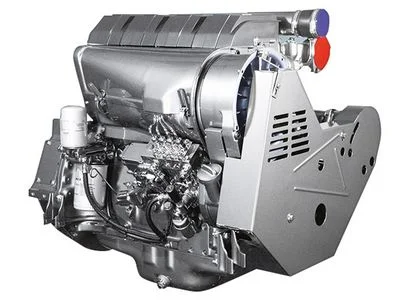

道依茨发动机 F6L914

Air-cooled 6-cylinder naturally aspirated engine in inline arrangement.4- and 6-cylinder engines also with turbocharging and optional charge air cooling.

咨询此产品 / 15981931666 ↗

询价时请提供发动机型号、序列号及所需零件信息。

详细资料



Air-cooled 6-cylinder naturally aspirated engine in inline arrangement.
4- and 6-cylinder engines also with turbocharging and optional charge air cooling.
Low noise emissions due to acoustically optimized components with very smooth running and high durability.
Also available with an electronic motor regulator (EMR) to allow easy integra- tion into the electronic device control and monitoring system.
Best cold starting performance even under extreme conditions.
Easy, inexpensive installation due to minimum weight and small installation space.
The robust engine design allows world- wide operation even with high sulphur fuels.
Highly efficient injection and combus- tion system ensures optimum engine performance at low consumption.
A very good load response ensures an immediate power supply.

Technical data
Emission norms EU II, EU I, US T2, US T1
Number of cylinders 6
Bore 102 mm
Stroke 132 mm
Displacement 6.5 l
Typical generator power at        50 Hz / 1500 rpm
Typical generator power (COP) 63 kW
Typical generator power (PRP) 66 kW
Typical generator power (LTP) 69 kW
Typical generator power at         60 Hz / 1800 rpm
Typical generator power (COP) 74 kW
Typical generator power (PRP) 78 kW
Typical generator power (LTP) 82 kW
Length 1057 mm
Width 704 mm
Height 810 mm
重量 430 kg
